Scope of Delivery:
- 1x Wago 221-412 connecting terminal 2 x 4 mm² 100 pieces
Product Description:

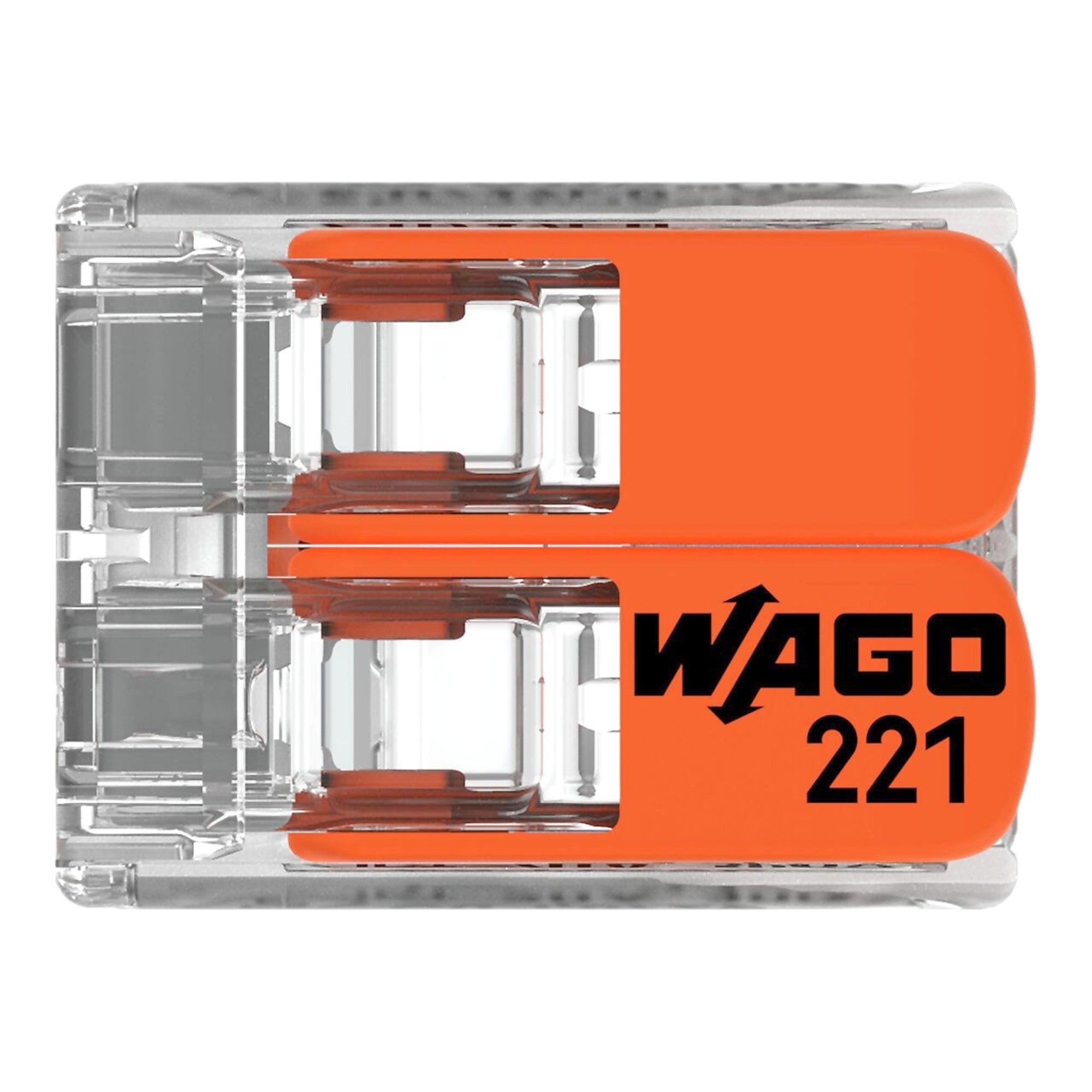

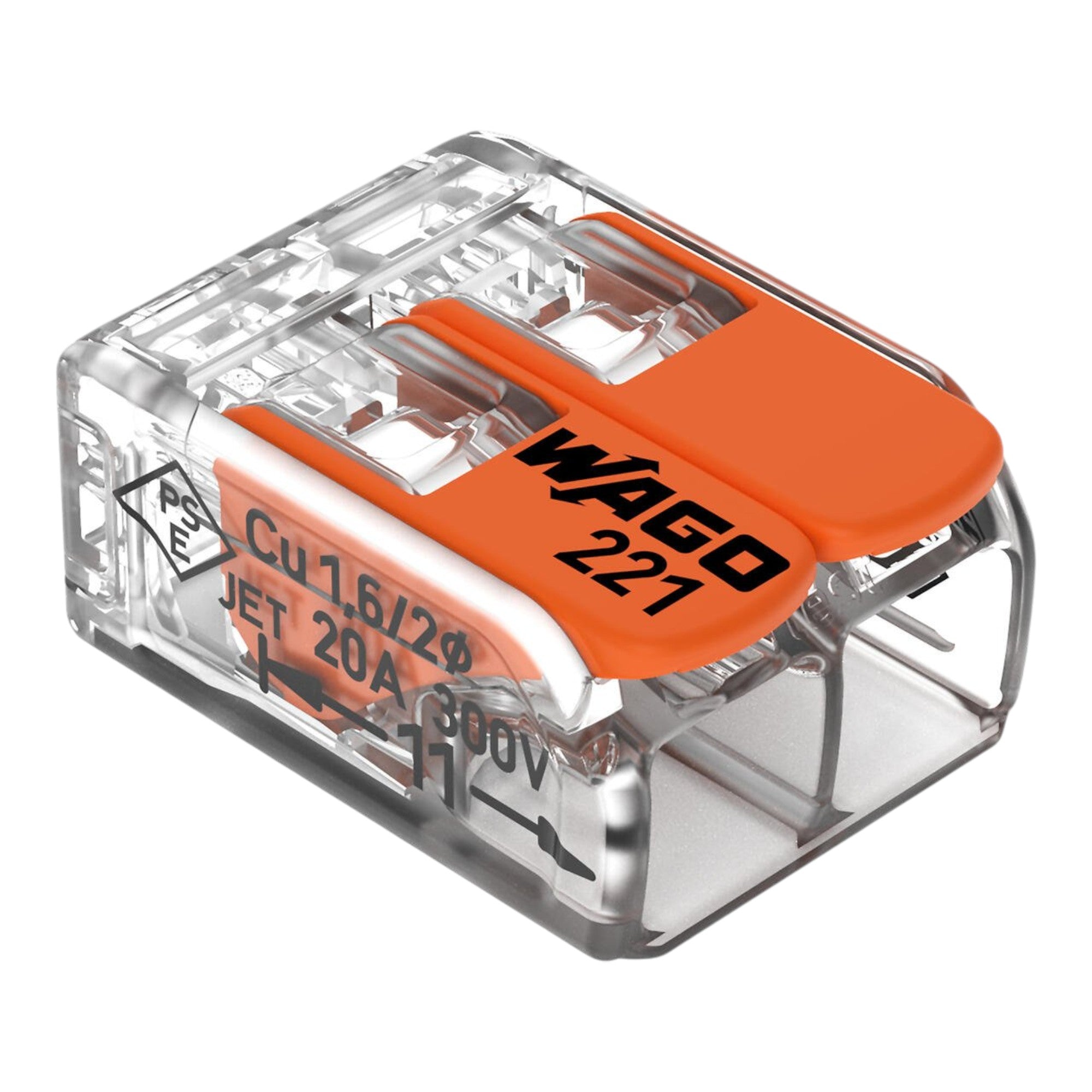

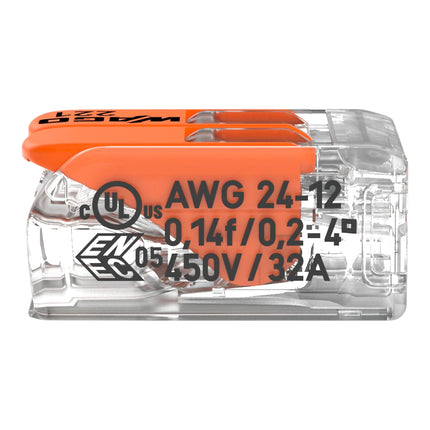

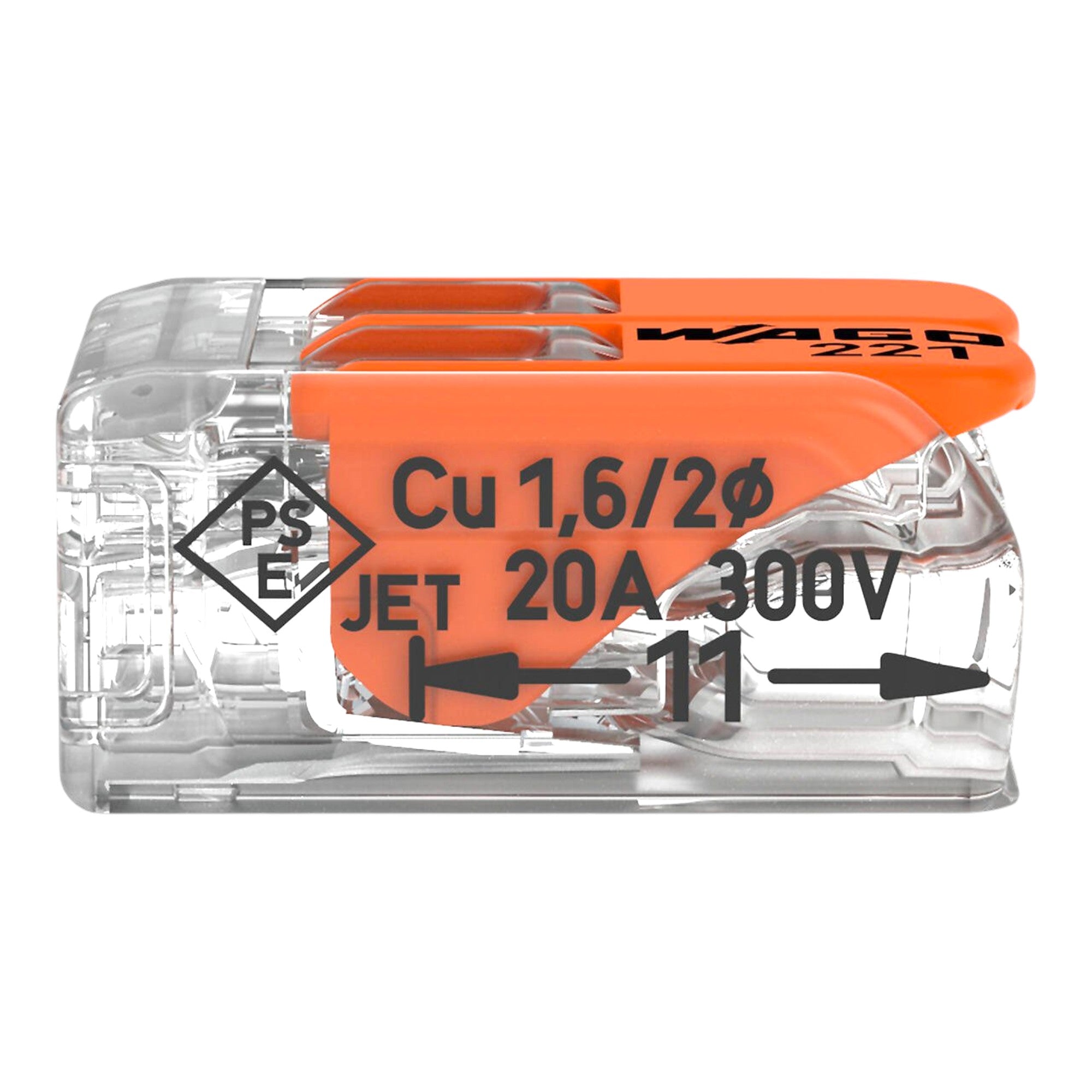

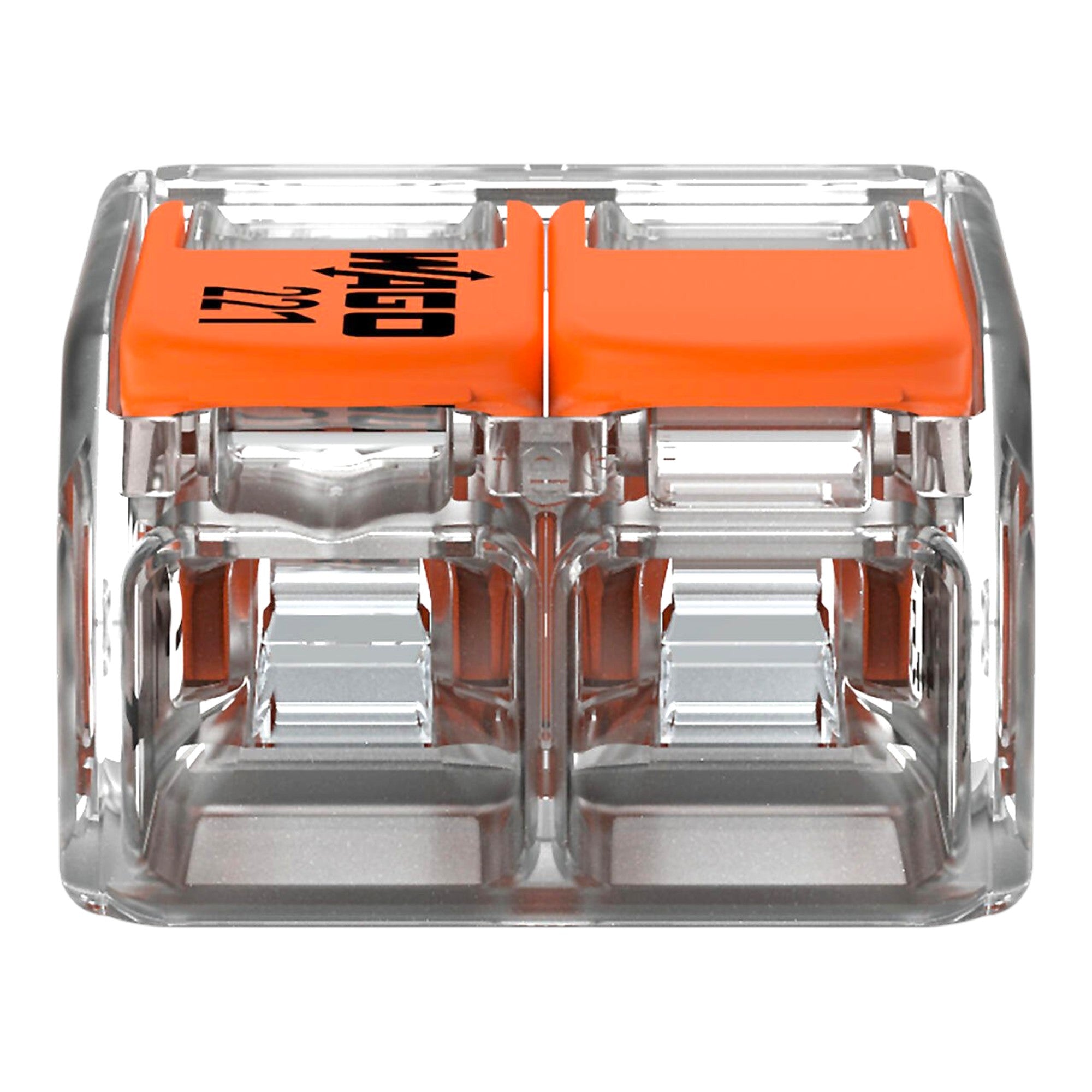

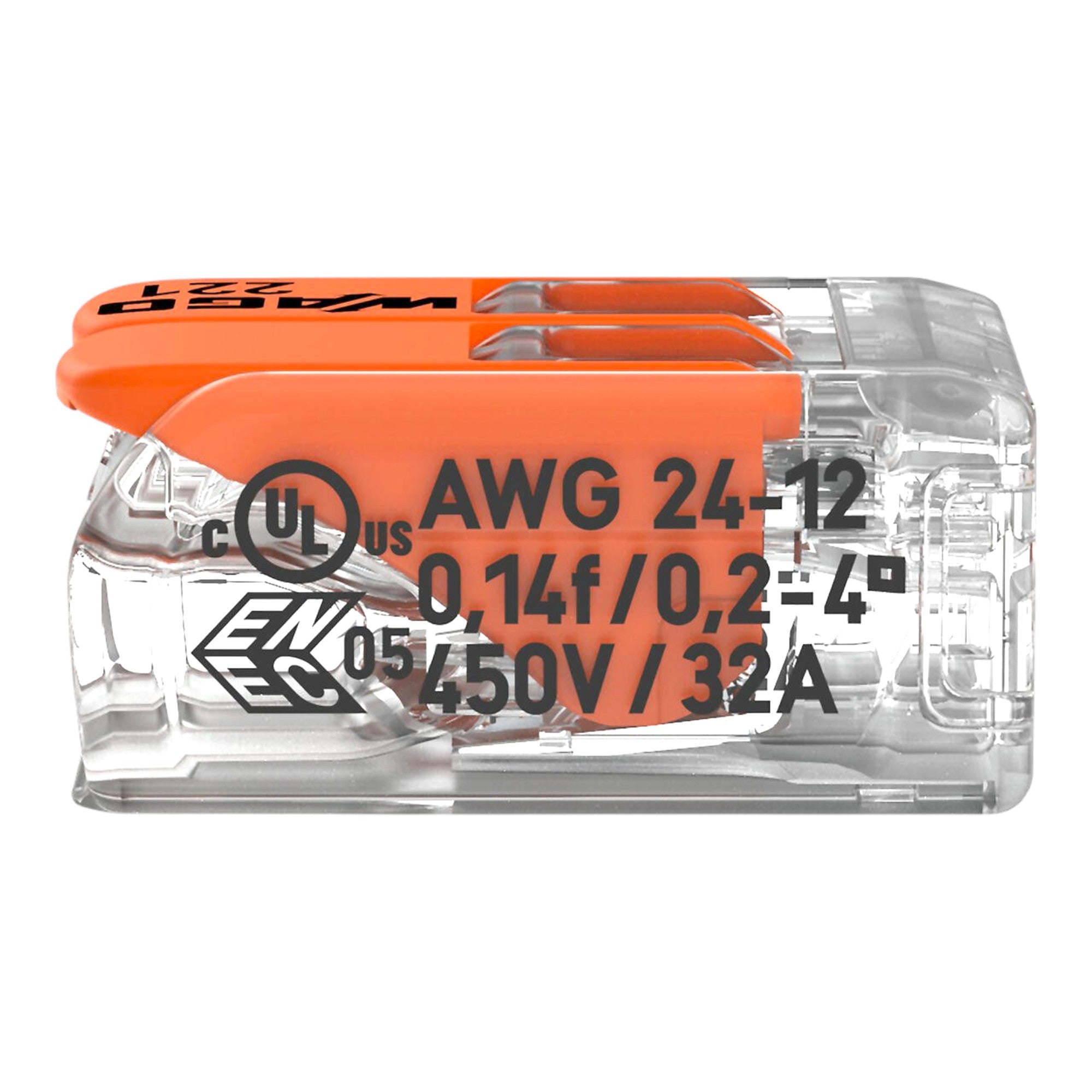

The Wago 221-412 connection terminal is a compact and reliable solution for the fast wiring of different types of conductors - from intercom systems to the connection of powerful consumers such as electric cookers. With a rated voltage of 450 V and a rated current of up to 32 A, it is also suitable for demanding applications. Thanks to the proven CAGE CLAMP® technology, it offers maintenance-free and safe connection technology, allowing conductors with cross-sections from 0.2 mm² to 4 mm² to be connected without pre-treatment, such as crimping on wire end ferrules. The required stripping length is 11 mm, and with compact dimensions of 13.1 x 8.3 x 18.6 mm (W x H x D), the terminal impresses with its space-saving design. The transparent housing enables immediate visual inspection of the standard-compliant conductor contact, while the flat, ergonomic levers ensure tool-free and convenient connection. Thanks to its modern design with levers seamlessly integrated into the base body and the characteristic piano look, the Wago 221-412 stands for innovation, safety and functional aesthetics - "Made by WAGO".
Technical Data:
- Manufacturer: Wago
- Manufacturer designation: 221-412
- Wiring direction: Lateral wiring
- Terminal points: 2
- Total number of potentials: 1
- Connection technology: CAGE CLAMP®
- Actuation type: Lever
- Connectable conductor materials: Copper
- Nominal cross-section: 4 mm² / 12 AWG
- Single-wire conductor: 0.2-4 mm² / 24-12 AWG
- Stranded conductor: 0.2-4 mm² / 24-12 AWG
- Fine-stranded conductor: 0.14-4 mm² / 24-12 AWG
- Stripping length: 11 mm / 0.43 inch
- Wiring direction: Lateral wiring
- Width: 13.1 mm / 0.516 inch
- Height: 8.3 mm / 0.327 inch
- Depth: 18.6 mm / 0.732 inch
- Colour: Transparent
- Insulation material group: IIIa
- Insulation material (main housing): Polycarbonate (PC)
- Flammability class according to UL 94: V2
- Fire load: 0.049 MJ
- Colour of the actuator: Orange
- Weight: 1.7 g
- Ambient temperature (operation): +85 °C
- Continuous operating temperature: 105 °C
- T-marking according to EN 60998: T85
- For commercial use, please observe the building regulations!
