Scope of Delivery:

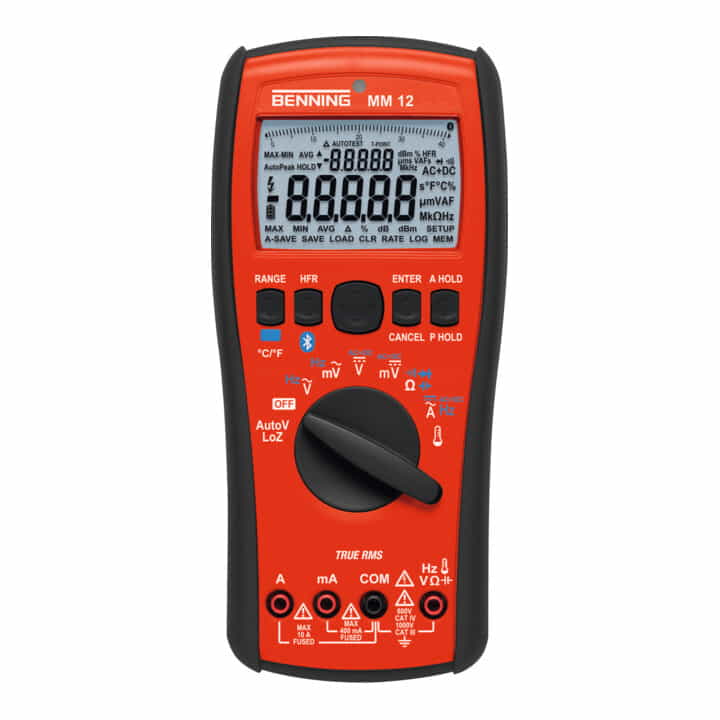

- Multimeter MM 12 0.0001 V-1000 V AC/DC
- Supplied with PC software, serial data cable with USB connection, rubber protective frame, magnetic hanger, bag, batteries (4x 1.5 V Mignon/ AA/ LR6), test leads, wire temperature sensor, calibration certificate Replacement battery see item no. 4000 901 811
Product Description:
with 4-digit, illuminated LCD display (4,000/ 40.000 dots) with bar graph and logging function as well as Bluetooth® interface - DC/AC voltage (10 µV - 1000 V), DC/AC current (10 µA - 10 A), resistance (0.1 Ω - 40 MΩ), frequency (0.1 Hz - 100 kHz), capacitance (0.01 nF - 40 mF), temperature (-200 °C - +1200°C) - continuity test (30 Ω) (buzzer)/ diode test (2.0 V) - LOG data logger function (40.000 measured values, sampling rate: 1 s - 10 min.) - MEM memory function (1.000 measured values, automatic A-SAVE and manual storage SAVE) - Free PC software BENNING PC-Win MM 12: Measured value transmission in real time via serial data cable with USB connection to PC or laptop, sampling rate (measuring interval) adjustable from 1 s to 10 min, display of measured values via line diagram and tabular form with calculation of maximum/minimum and average value, storage of up to 100.000 measured values in MS EXCEL® format, download of the data logger LOG and the memory MEM - Bluetooth® Low Energy 4.0 interface and optical interface via USB connection - IOS and Android APP for online transmission and download of the data logger/memory - Download free APP "BENNING MM-CM Link"! View, save and share the measured values for further analysis. Monitor up to 5 digital multimeters simultaneously from a safe distance. Transmit measured values in real time via Bluetooth 4.0 to smartphone and tablet (IOS/ Android from 4.3). Download the LOG data logger and the MEM memory. Storage of measured values in CSV format. Display of measured values via line diagram and tabular form - AutoV function for automatic AC/DC voltage detection and low input impedance (LoZ) for suppressing capacitive/inductive interspersed voltages - Low-pass filter (high-frequency suppression HFR) for measurements on motor drives - Automatic/manual range selection, automatic switch-off, battery status display - measured value (HOLD), peak value memory (P-HOLD), relative measurement (REL), maximum/minimum/average value (MAX/ MIN/ AVG), level measurement (dB/dBm) - measurement category CAT IV 600 V, CAT III 1000 V
Technical Data:
- Width: 94mm
- Length: 206mm
- Height: 54mmNote on the disposal of batteries and rechargeable batteries
