Description

Package contents:

- 200x HECO MULTI MONTI plus MS Screw Anchors 7.5 x 45mm

Product description:

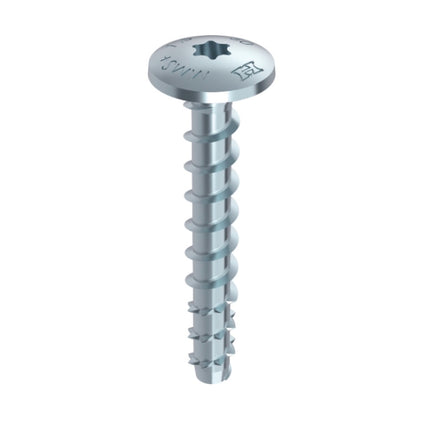

The MULTI MONTI plus screw anchor from HECO is the improved version of the MULTI MONTI concrete screw. One of its main advantages is that it can be inserted directly into a pre-drilled hole without the need for a dowel, and can be stressed immediately. It features a functional point with reinforced teeth that taps into the building material as it is being screwed in so by producing an integral connection for a perfect anchoring. In addition to simplifying the assembly process, the MULTI MONTI system guarantees optimum safety for the user. The MULTI MONTI plus can be fitted close to the edges without the need for a torque spanner and it can be dismantled and reused. Heco is a leading manufacturer of screws, renowned for the excellent quality of its products and its long tradition.

Technical specifications:

Manufacturer: HECO
Manufacturer's number: 49829
Manufacturer's designation: MULTI MONTI plus MS

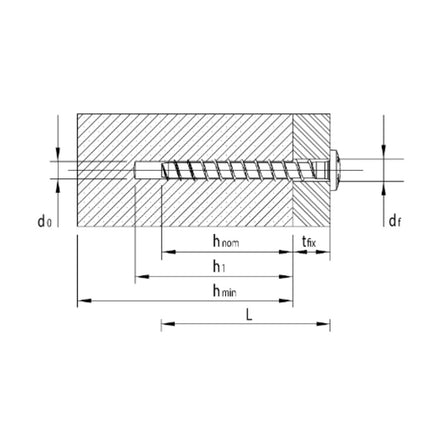

Mounting thickness, tfix1: 10 mm

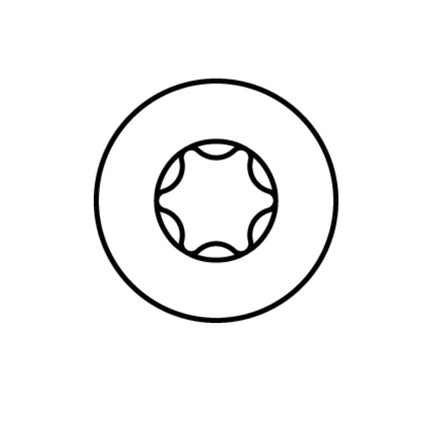

drive size: T-30
Drill hole diameter, d0: 6.0 mm
Drill hole depth, h1: 40 mm
Through hole in attachment, df: 9 mm
Screw-in depth, hnom1: 35 mm
Thread length, lg: 42 mm
Head diameter, dk: 17.0 mm
Recommended max. power output of the impact wrench, Tmax1: 120 Nm
Minimum component thickness, hmin: 100 mm
Min. edge distance, cmin: 30 mm
Diameter, d: 7.5 mm
Length, l: 45 mm
Head design: Mounting rail anchor with flat round head
Drive: T-Drive
Surface: galvanised blue, A2K
Material: carbon steel
European technical assessment: ETA-15/0785
Fire resistance class: F120/R120
Sprinkler approval: Yes
General building authority approval: Z-21.1-2103

Product form

HECO MULTI MONTI plus MS Screw Anchor 7.5 x 45mm Concrete Screw flat round head T-Drive galvanised blue A2K 200pcs. (2x 49829)

SKU: 26138 EAN: 4064677024147
    €60,29
    incl. VAT, plus shipping
