Description

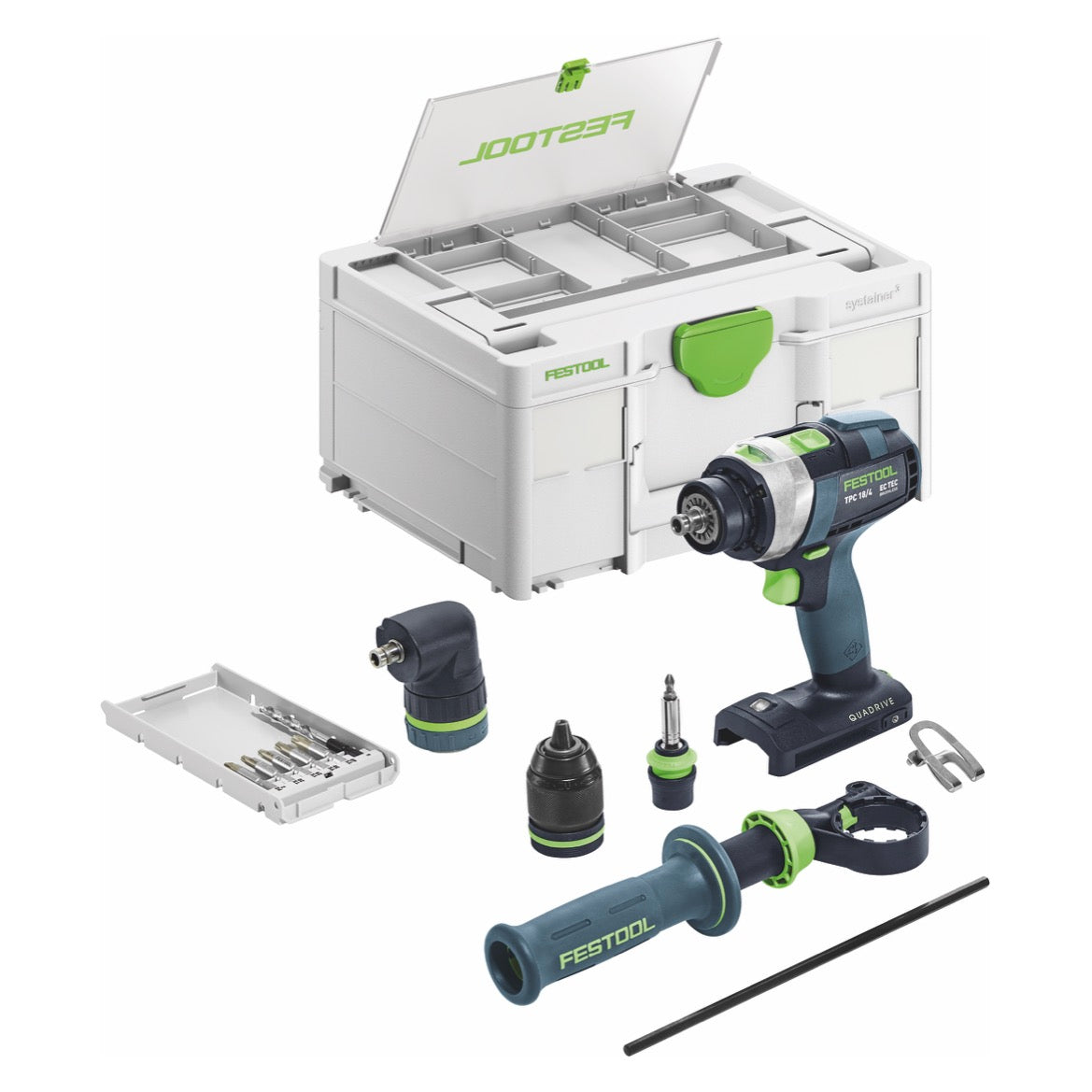

Scope of Delivery:
- 1x Festool TPC 18/4 cordless impact drill
- 1x PZ 2 bit
- 1x BKS SYS3 D6 PZ TX 50 CE bit cassette
- 1x CENTROTEC magnetic bit holder BH 60 CE-Imp
- 1x FastFix quick-action drill chuck 13 mm KC 13-1/2-MMFP
- 1x angle attachment AN-UNI
- 1x Tool chuck WH-CE CENTROTEC
- 1x additional handle
- 1x belt clip

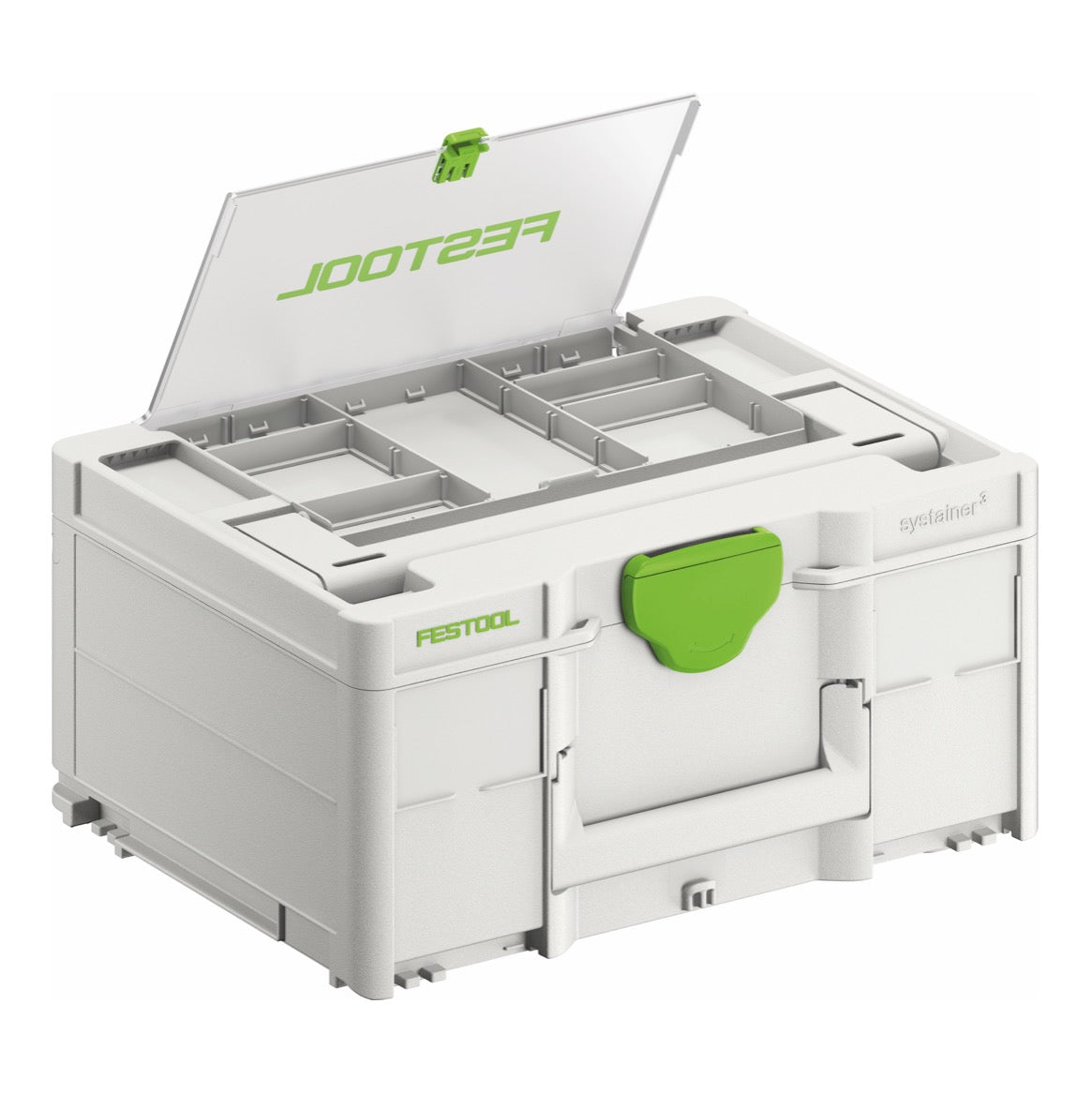

- 1x Systainer SYS3 DF M 187
- without battery, without charger

Product Description:

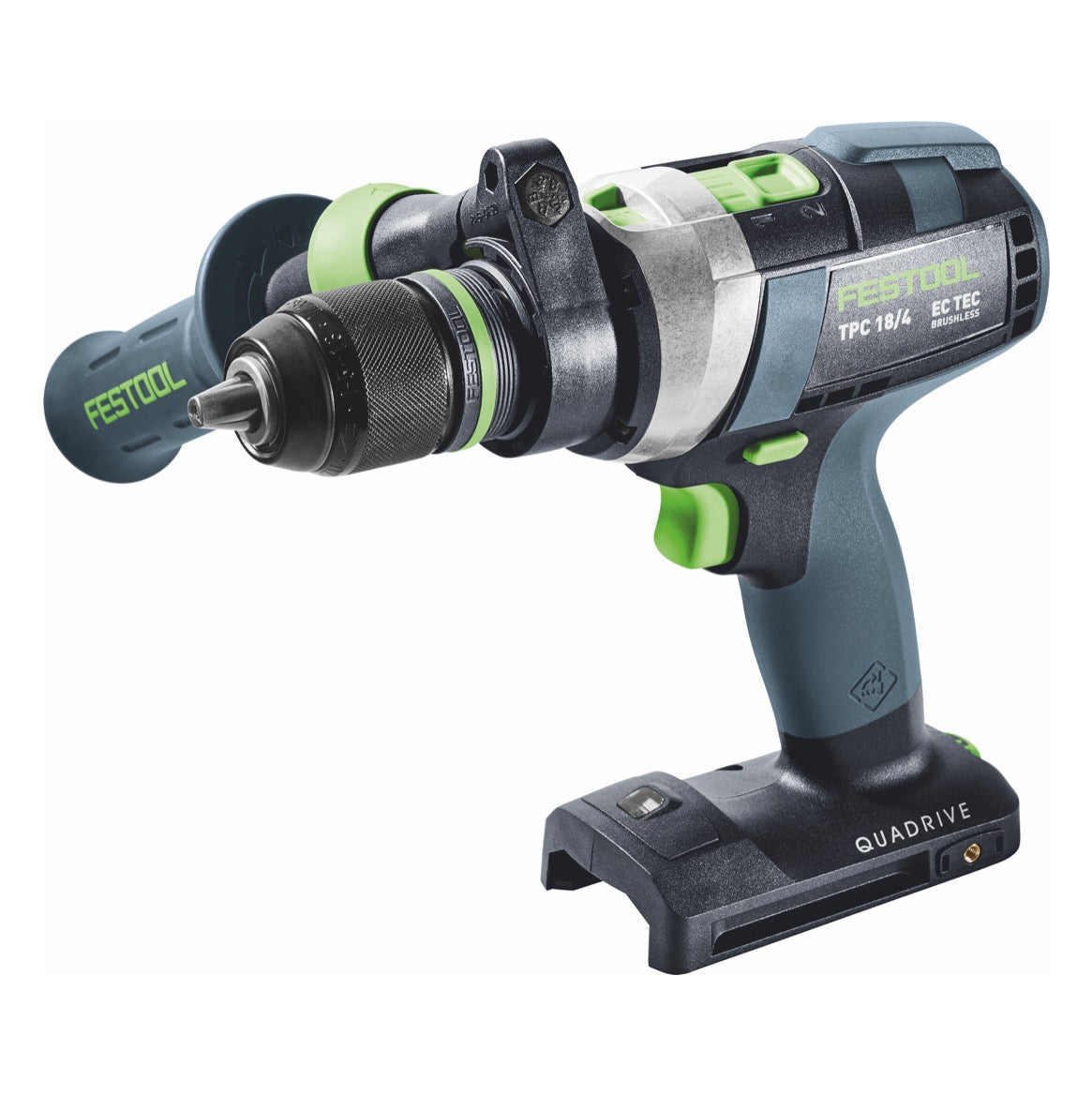

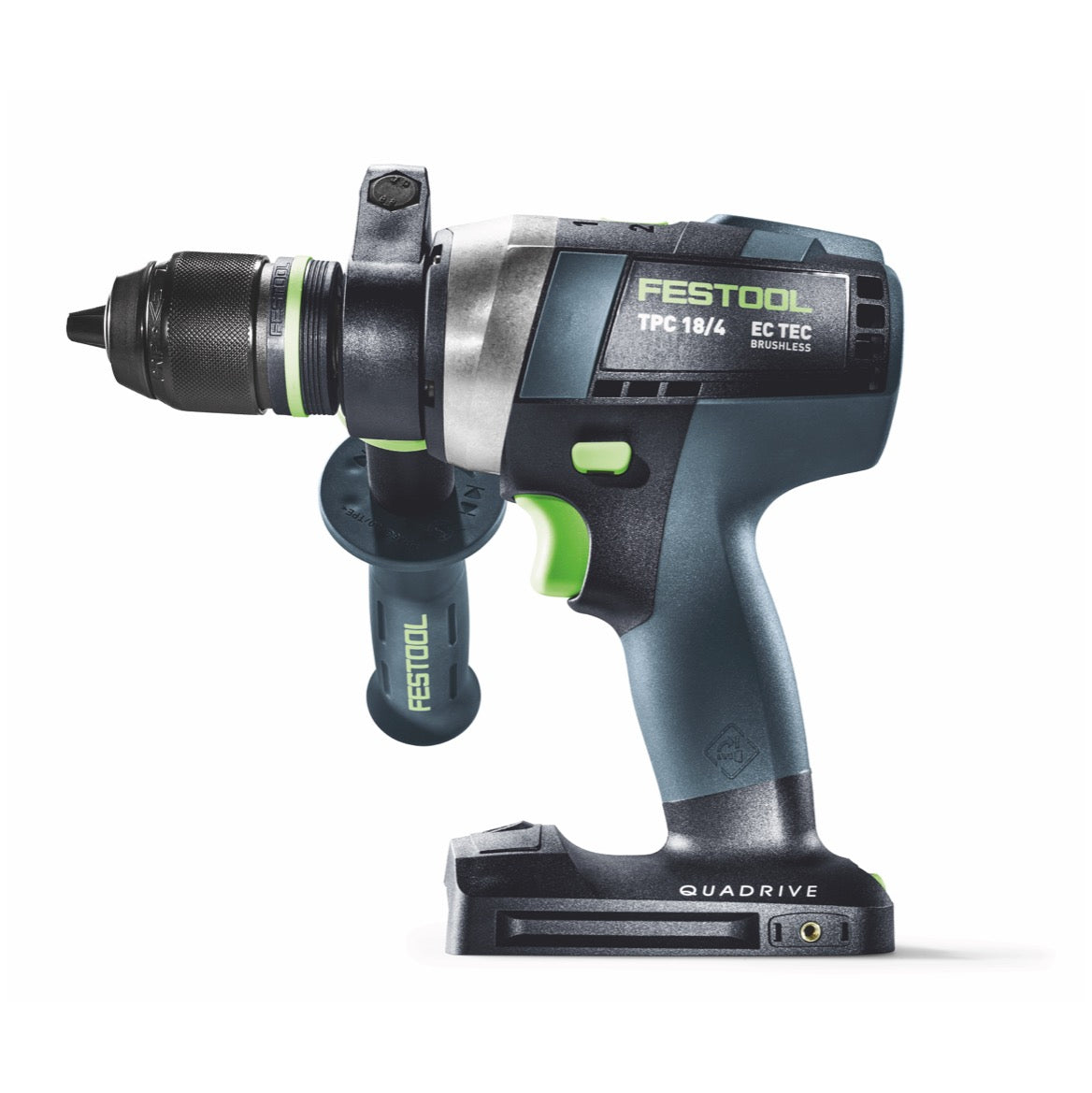

With the TPC 18/4, Festool offers a powerful cordless impact drill for the highest demands. The combination of a handy design and enormous power enables comfortable and effective work. Thanks to the 4 different gears, the drill driver can be optimised for all applications. This means that screwing with 50 Nm is just as possible in 1st gear as drilling in 4th gear at 3600 rpm. The brushless EC-TEC motor combines enormous resilience and endurance with low wear and therefore a long service life. Thanks to the FastFix interface, the attachments can be changed quickly and without tools. The KickbackStop function minimises the risk of serious injury when the drill driver jams by stopping the motor, thereby protecting the user's health. Festool is a premium manufacturer of power tools that is characterised above all by its long tradition and very high quality workmanship.

Technical Data:
- Manufacturer: Festool
- Manufacturer's designation: TPC 18/4
- Manufacturer number: 577625
- Battery voltage: 18 V
- Gears: 4
- Idle speed 1st/2nd gear: 0 - 500/0 - 800 min-¹
- Idle speed 3rd/4th gear: 0 - 2350/0 - 3600 min-¹
- Max. Impact speed: 57600.00 min-¹
- Drill diameter wood/steel: 70/13 mm
- Drilling diameter masonry (brick): 10.00 mm
- Torque setting 1st/2nd gear: 2 - 20/2 - 20 Nm
- Max. Torque wood/steel: 50/75 Nm
- Drill chuck clamping width: 1.5 - 13 mm
- Product weight without accessories: 1.30 kg
- Transport weight incl. accessories: 5.00 kg
- Drive type: Battery
- Impact drilling in concrete: Total mean vibration value ah: 14.00 m/s²
- Impact drilling in concrete: Standards series EN: 62841
- Impact drilling in concrete: Uncertainty (noise) K: 5.00 dB
- Impact drilling in concrete: Uncertainty (vibration) K: 1.50 m/s²
- Impact drilling in concrete: A-weighted sound pressure level Lp: 94.00 dB(A)
- Impact drilling in concrete: A-weighted sound power level Lw: 105.00 dB(A)
- Drilling in metal: Overall vibration mean value ah: 3.00 m/s²
- Drilling in metal: Standards series EN: 62841
- Drilling in metal: Uncertainty (noise) K: 5.00 dB
- Drilling in metal: Uncertainty (vibration) K: 1.50 m/s²
- Drilling in metal: A-weighted sound pressure level Lp: 73.00 dB(A)
- Drilling in metal: A-weighted sound power level Lw: 84.00 dB(A)
- Screws: Total vibration mean value ah: 2.50 m/s²
- Screws: Standards series EN: 62841
- Screws: Uncertainty (noise) K: 5.00 dB
- Screws: Uncertainty (vibration) K: 1.50 m/s²
- Screws: A-weighted sound pressure level Lp: 73.00 dB(A)
- Screws: A-weighted sound power level Lw: 84.00 dB(A)
- For commercial use, please observe the building regulations!

For commercial use, please observe the building regulations!

Specifications

• Fabricante: Festool
• Peso: 1300g
• Unidad: batería
• Voltaje: 18V
• Vibración valor K: 1,5 m/s²
• Longitud: 189 mm
• Ancho: 50 mm
• Altura: 122 mm
• Velocidad máxima de ralentí: 3600 rpm.
• Nivel de presión sonora: 94 dB
• Vibración máx.: 14 m/s²
• Ruido del valor K: 5 dB
• Nivel de potencia sonora: 105 dB
• Par máximo: 75 Nm
• Capacidad de perforación en madera: 70 mm
• Capacidad de perforación en acero: 13 mm
• Capacidad de perforación en mampostería: 10 mm
• Velocidad máxima de ralentí: 57600 rpm.
• Portabrocas sin llave: Sí
• Transmisión: 4 velocidades
• Tensión del portabrocas: 1,5 - 13,0 mm
• Ajuste del par 1.ª marcha: 50 Nm
• Ajuste del par 2.ª marcha: 75 Nm
• Asa lateral: Sí
• Valor de emisión de vibraciones: 14 m/s²
