Scope of Delivery:

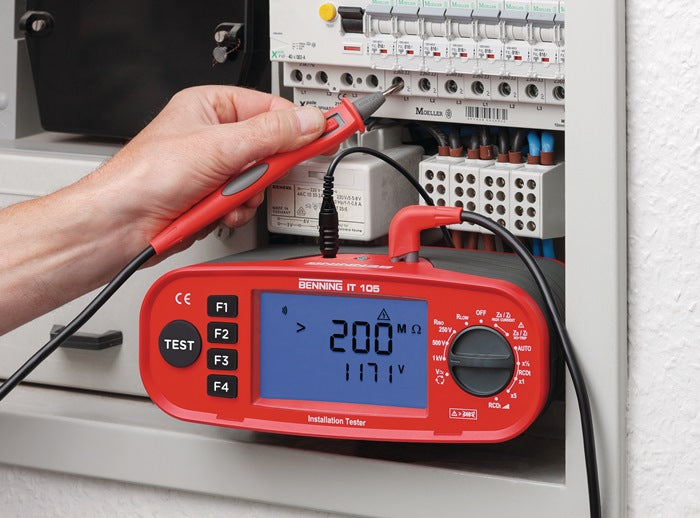

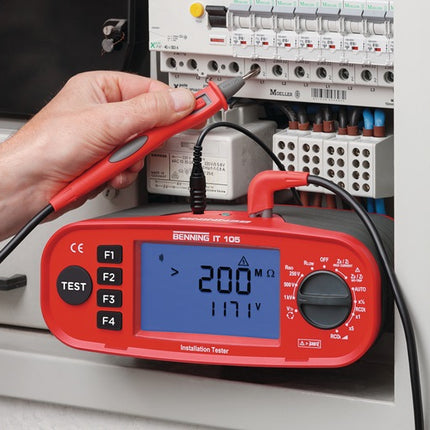

- 1x BENNING installation tester for testing electrical systems
- Robust hard case, test probe with TEST button, test probe/crocodile clip set, test lead with earthing contact plug, shoulder strap, 6 x 1.5 V AA batteries (type AA), calibration certificate
Product Description:
for simple and efficient safety tests on electrical installations after installation, modification or as a regular periodic test, in accordance with DIN VDE 0100-600 (IEC 60364-6) and DIN VDE 0105-100 (EN 50110) Measurements: Low-impedance resistance (200 mA test current) - Insulation resistance (250 V/ 500 V/ 1000 V test voltage) - Line impedance (L-N/ L) and short-circuit current (PSC) - Loop impedance (L-PE) without RCD tripping and residual current (PFC) - Testing of RCD circuit breakers with tripping time (Auto, ½ x, 1 x, 5 x IdN) and tripping current (ramp) - Test current sinusoidal (AC) and pulsating direct current (A), standard and delayed (S) - Voltage up to 440 V - Frequency - Rotary field Special product benefits: Extra-large graphic display (95 x 55 mm) with backlighting - Test probe with TEST button to start the measurement process - AUTO start function for low-resistance, loop and line impedance measurement - LOCK function (continuous measurement) of insulation resistance - Compensation (zero balancing) of test leads up to 10 Ω for RPE measurement
Technical Data:
- Application: for testing electrical systems
- Brand: BENNINGNote on the disposal of batteries and accumulators Since we sell batteries and accumulators or devices containing batteries and accumulators, we are obliged under the Battery Act (BattG) to draw your attention to the following: The symbol of the crossed-out dustbin on batteries or accumulators means that they must not be disposed of with household waste after use. If batteries or accumulators contain mercury, cadmium or lead, you will find the respective chemical symbol (Hg, Cd or Pb) below the symbol of the crossed-out dustbin. Every user of batteries or accumulators is legally obliged to return old batteries and accumulators. You can do this free of charge at a retail outlet or other collection point in your area. You can obtain the addresses of suitable collection centres in your area from your city or local authority. For batteries that contain more than 0.0005 per cent mercury by mass, more than 0.002 per cent cadmium by mass or more than 0.004 per cent lead by mass, the chemical designations of the pollutant used can be found under the waste bin symbol. The chemical designations have the following meaning: Pb: Battery contains lead Cd: Battery contains cadmium Hg: Battery contains mercuryFor commercial use, please observe the building regulations!
