Scope of Delivery:

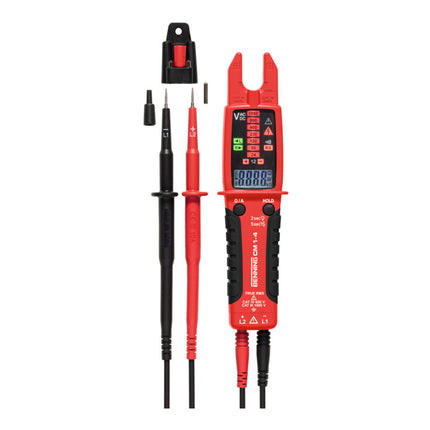

- Current clamp multimeter CM 1-4 0.1 A-200 A AC
- Supplied with belt holster, test leads, rubberised contact tip protection, push-on caps (CAT III/IV), contact tip enlargement (Ø 4 mm), batteries (2 x type AAA), replacement batteries see art. no. 4000 901 810
Product Description:
4-part illuminated LCD display (9,999 dots) - with open current clamp, LED step display, phase and rotary field test - rotary field direction test via green LEDs (right/left) - voltage display from 50 V functional with empty batteries - deactivatable signal tone for voltage measurement - one-hand operation for voltage measurement on sockets (19 mm) - automatic range selection - measured value memory (HOLD) - self-test device (self-test) - LED measuring point illumination - measuring category CAT IV 600 V, CAT III 1000 V Measuring ranges: Alternating current (100 mA - 200 A), voltage (6.0 V - 1000 V), resistance (1 Ω - 50 kΩ), rotary field direction display, continuity test, single-pole phase conductor test (phase), polarity test
Technical Data:
- Width: 57mm
- Length: 220mm
- Pliers opening: 16mm
- Height: 35mm
- subject to testing: yesNote on the disposal of batteries and rechargeable batteries
- As we sell batteries and rechargeable batteries or devices containing batteries and rechargeable batteries, we are obliged under the Battery Act (BattG) to draw your attention to the following: The symbol of the crossed-out dustbin on batteries or accumulators means that they must not be disposed of with household waste after use. If batteries or accumulators contain mercury, cadmium or lead, you will find the respective chemical symbol (Hg, Cd or Pb) below the symbol of the crossed-out dustbin. Every user of batteries or accumulators is legally obliged to return old batteries and accumulators. You can do this free of charge at a retail outlet or other collection point in your area. You can obtain the addresses of suitable collection centres in your area from your city or local authority. For batteries that contain more than 0.0005 per cent mercury by mass, more than 0.002 per cent cadmium by mass or more than 0.004 per cent lead by mass, the chemical designations of the pollutant used can be found under the waste bin symbol. The chemical designations have the following meaning: Pb: Battery contains lead Cd: Battery contains cadmium Hg: Battery contains mercury
For commercial use, please observe the building regulations!
